DIAMOND PELLET/DIAMOND PELLET(BLOCKING TYPE)
- Features
- The metal bond consisting of copper alloy series, cobalt series, iron alloy series or bonding agents made from other metals.The retention of the abrasive coating is high and they have excellent cutting and abrasion resistance.
- Phenol resin, Polyimide resin, and resinoid bond that is an organic bond comprising mainly of heat resistant hardened molecular compound.The processing efficiency is high and the surface quality of the work piece can be highly improved by finishing the rough surface and chipping etc.
- Applications
- It is used in the heavy grinding and fine grinding of many objects such as crystals (fluorite, quartz, sapphire, etc.), alumina ceramics, semi-conductor materials (silicon, etc.) and ferrites, and mainly of optical glass.
* When using the diamond pellet, fix the pellet on the grinding tool plate and then use it for wet grinding.
- Variations in Bond (bonding agent)
- Metal bond : More than 100 categories
Resinoid bond : More than 30 categories
Also Bitriphyde bond, etc.
Selection can be done on the basis of work material, processing machine, processing conditions, etc.
Product Standards

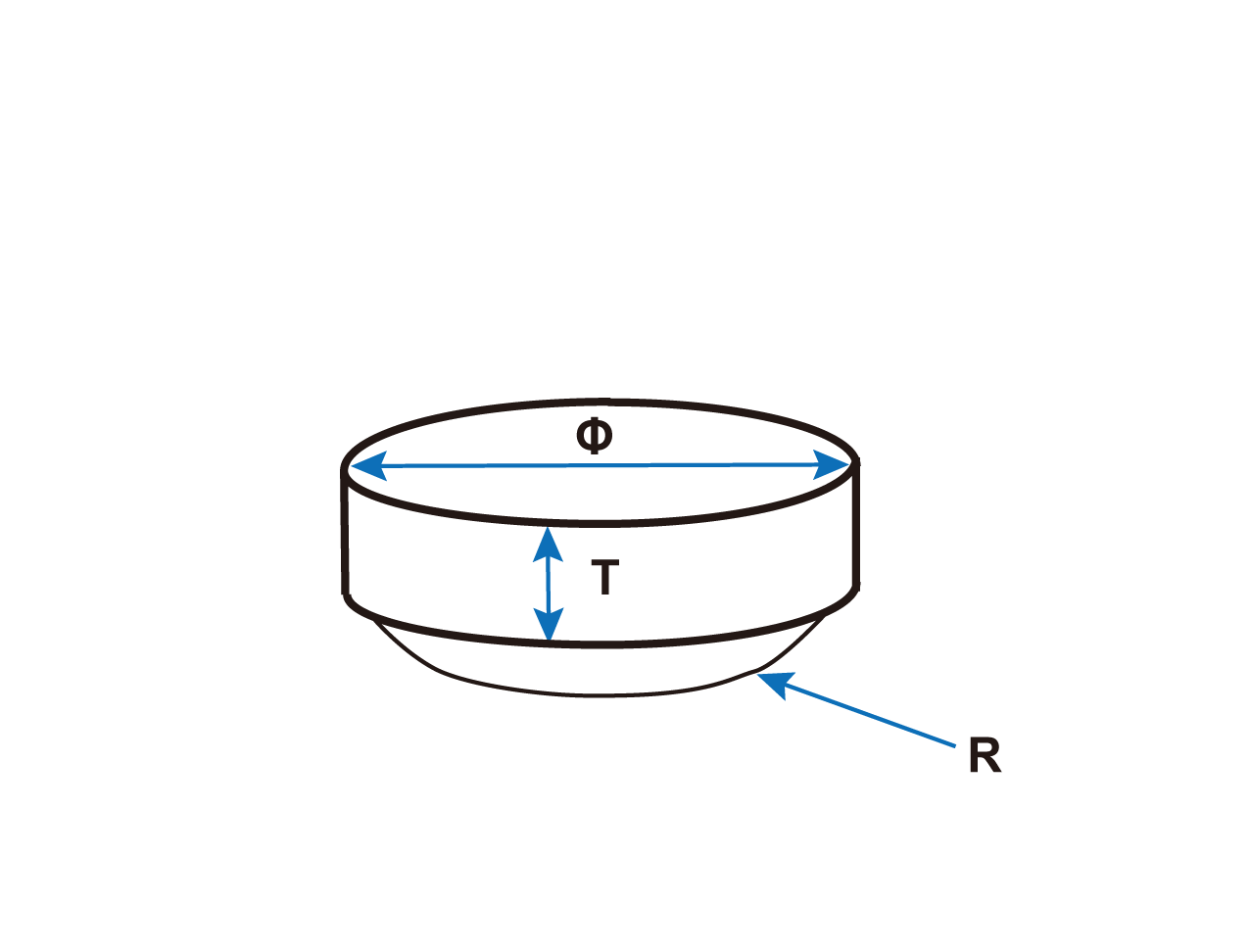

| Diamond Pellet | |
|---|---|
| Diameter（φ） | 3、4、5、6、7、8、10、12、14、16、20 mm |
| Thickness（T） | 2、3、5 mm, etc. |
| Curvature（R） | 10R～∞(Roughness) |
| Grain size | #40～#8,000 |
* For detailed specification of the diamond tools, please inquire our Sales rep.
* Size and specifications shall be customized. Please consult for your requirements.
| Diamond Pellet(Blocking type) | |
|---|---|
| Diameter（φ） | 1.5～120 mm |
| Thickness(T) | 5、10 mm, etc. |
| Curvature(R) | 2.5R～∞(Sphere R) |
| Grain size | #40～#8,000 |
* For detailed specification of the diamond tools, please inquire our Sales rep.
* Size and specifications shall be customized. Please consult for your requirements.
The shanks are customizable to fit your processing machine.
Please inquire about the unit price, delivery deadline and other specifications.
